Ortho (L1D/L1D_SR)

drawing

Product description

The L1D and L1D_SR imagery products are 4-band (RGB+NIR) products designed for accuracy and best of class image quality. They are delivered to customers after going through a radiometric and geometric correction process.

The ortho products are currently offered in two major processing levels:

  • L1D TOA Reflectance (L1D)
  • L1D TOA Reflectance SuperResolution (L1D_SR)

L1D_TOA is a 4 bands (Blue, Green, Red and Near Infrared) imagery product with Top of the Atmosphere reflectance records measurements in physical units, and enables analysts to perform basic classifications and analytics. The imagery is radiometrically and geometrically corrected. Pixel values are scaled to TOA Reflectance (0 to 1) multiplied by a factor 10000 (1e4) to avoid float numbers. L1D TOA has a resolution of 1m for Mark IV and 0.7m for Mark V after resampling, which harmonises native pixel size that varies between 0.7m and 1.3m.

L1D_SR_TOA goes through one step further in processing which applies proprietary super resolution algorithm to improve the Ground Sample Distance (GSD) from 1m to 70 cm for Mark IV satellites and from 70cm to 50cm for Mark V satellites.

Both L1D and L1D_SR products are currently delivered along with a corresponding VISUAL Products called L1D_VISUAL and L1D_SR_VISUAL. This is a 3 bands imagery (red, green and blue) derived from the TOA product, processed with a color enhancement algorithm as described at section.

Both products are geometrically corrected using the GEDTM v1.2 as the vertical reference for orthorectification, providing accurate elevation data for accurate geometric correction.

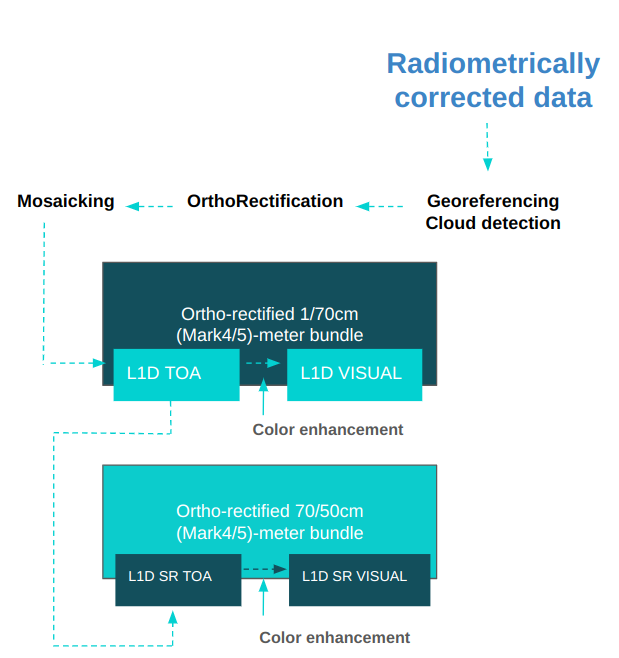

The figure below illustrates the high level image processing workflow, which begins upon receiving raw data and is completed after the transfer of processed data to the image catalog and product delivery package:

drawing

For geometric and radiometric processing details please refer to Image processing section.

Technical Specifications

Parameter

Mark IV

Mark V

Spectral bands

Blue : 450 - 510 nm
Green: 510 - 580 nm
Red : 590 - 690 nm
NIR : 750 - 900 nm

Blue : 450 - 517 nm
Green: 517 - 583 nm
Red : 597 - 690 nm
NIR : 759 - 890 nm

GSD

1m (L1D) / 0.7m for (L1D_SR)

0.7m (L1D) / 0.5m (L1D_SR)

Scene Swatha

5.1 km

6.5 km

Image bit depth

8-bit for VISUAL, 16 bit for TOA

Max Off-Nadir angle

± 25 deg

Algorithms applied

Radiometric correction, Band Alignment, Fine geolocation, Projection to UTM and orthorectification

Geolocation Accuracyb

10m CE90 TBC

Band alignmentb

<= 2px CE90 TBC

Image format

GeoTiff, LZW lossless compression

Package Sizec

9.5 MB/km² (L1D)
17.5 MB/km² (L1D_SR)

19 MB/km² (L1D)
35 MB/km² (L1D_SR)

Ancillary files

Cloud mask (GeoTiff), preview (PNG), thumbnail (PNG), toa_factors (JSON) and imagery footprint in vector format.

\(^a\) Varies with the altitude of the satellites and the off-nadir angle.

\(^b\) Nominal specifications include (but are not limited to) cloud-free conditions, high feature contrast, and nominal collection geometry.

\(^c\) Image size may vary depending on image content.

Packaging specification

The L1D package (the same applies for L1D_SR) is delivered as a package scene (via S3, FTP, or Zip download link) and contains the following files:

  1. VISUAL
  2. TOA
  3. preview
  4. thumbnail
  5. CLOUD
  6. footprint
  7. solar and viewing angles
  8. toa factors
  9. metadata files

The following is the structure of the package directory (further details will be given in the corresponding subsections):

.
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_CLOUD.vrt
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_footprint.kml
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_metadata_iso.xml
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_metadata_stac.geojson
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_preview.png
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_solar_and_viewing_angles.geojson
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_thumbnail.png
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_toa_factors.geojson
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_TOA.vrt
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_TOA.vrt.ovr
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_VISUAL.vrt
├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_VISUAL.vrt.ovr
└── rasters
    ├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_CLOUD_{chunk_index}.tif
    ├── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_TOA_{chunk_index}.tif
    └── {date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_VISUAL_{chunk_index}.tif

Note

Non documented files or parameters should be ignored.

All assets follow the same basename template.

{DATE}_{TIME}_{SECOND_DECIMALS}_{SATELLITE}_{PRODUCT}_{PAYLOAD}_{SUFFIX}.{EXTENSION}

  • DATE: Year(4 digits)month(2 digits)day(2 digits)
  • TIME: Hour(2 digits)minute(2 digits)second(2 digits)
  • SECOND_DECIMALS: All the decimal part from the timestamp seconds
  • SATELLITE: Satellite number
  • PRODUCT: L1D / L1D_SR
  • PAYLOAD: MS for multispectral (4 bands)
  • SUFFIX: depends on the asset
  • EXTENSION: depends on the asset type

All time values refer to the capture time in UTC. Hence the string 20220619_153346_938 represents actually 2022-06-19 15:33:46.938.

Rasters and previews

drawing drawing drawing

We provide the TOA raster as a .vrt file (together with the corresponding .vrt.ovr overview). An 8bits, RGB enhanced version of the original BGRN raster with the same spatial resolution is also delivered as VISUAL. Downsampled versions (preview and thumbnail) are also provided for visualization purposes in .png format.









The corresponding GeoTiff files that together compound the .vrt are located inside the rasters directory. Scene delivery is conditional on the geographical extent of its bounding box, with a threshold of 100 kilometers established for the longest side.

  1. Delivery in a single chunk: if the longest dimension of the scene's extent is less than 100 kilometers, the entire scene is presented in a single image file. In the previous table nomenclature, there will be only one chunk N=0. In particular, all standard POIs we offer (25, 50 and 100 square kilometers) are delivered in this manner.
  2. Chunking via fixed grid: if the longest dimension exceeds the 100 km threshold, the scene is subjected to tiling based on a fixed, predefined grid system.

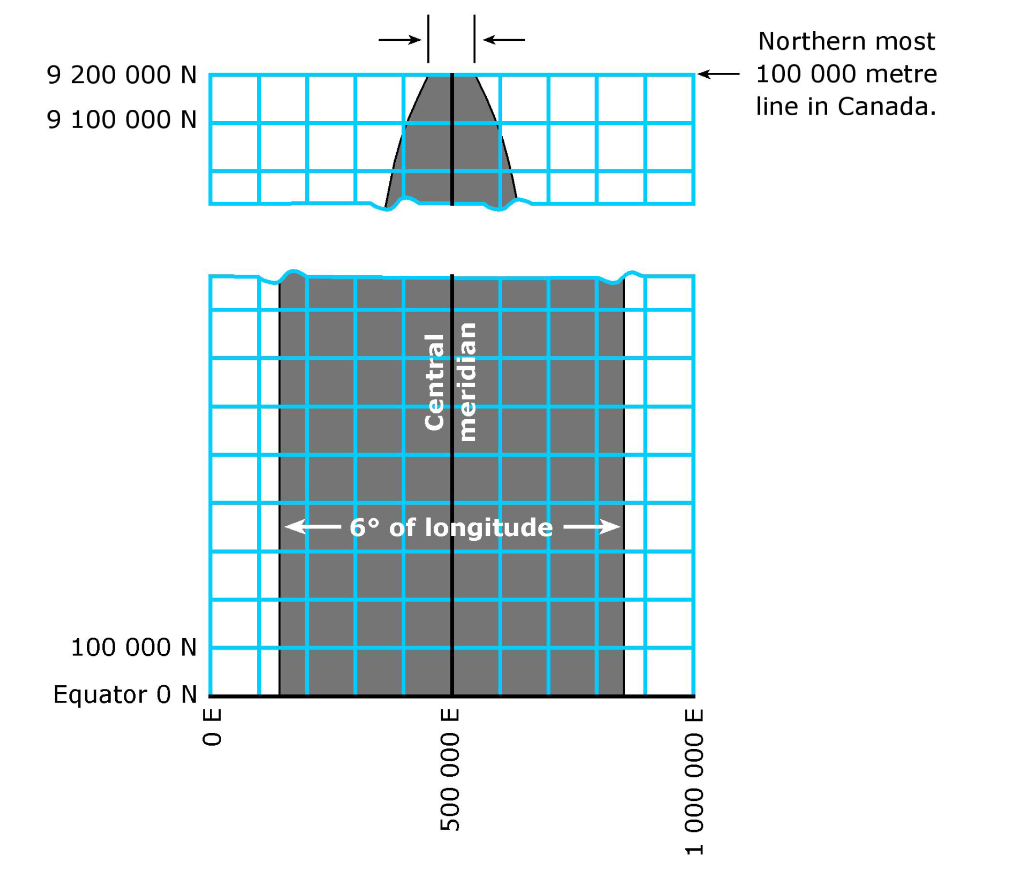

    • Hierarchical grid: this system is derived from base $2 \times 2 \text{ km}$ cells (tiles grid), which are aggregated into larger delivery tiles of $80 \times 80 \text{ km}$ (resulting from $40 \times 40$ base cell groups).
    • Non-constant segment size: consequently, the size and shape of the resulting output chunks are not constant. The final size of each chunk is determined by how the scene's extent intersects with the boundaries of this fixed $80 \times 80 \text{ km}$ delivery grid.
    • Captures whose geographical extent straddles the boundary between two or more UTM zones may contain chunks that do not conform to the standard format described above. Generally, these chunks have dimensions significantly smaller than expected due to fragmentation in the transition zones of the projection.

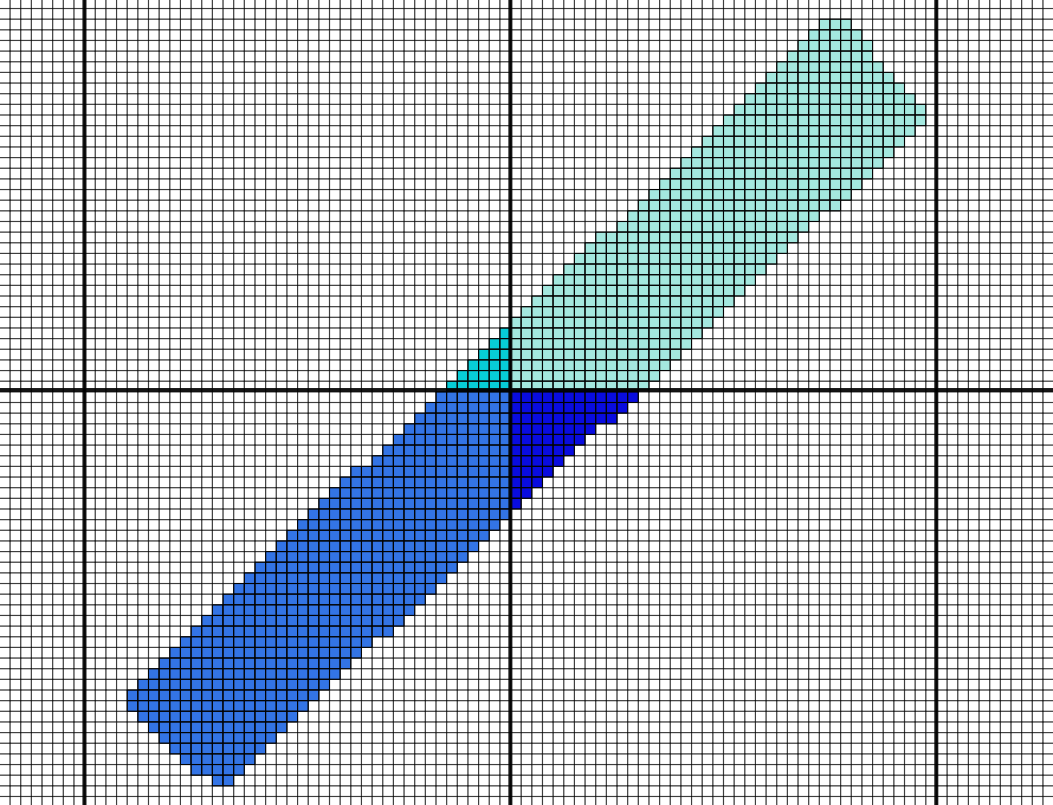

CHUNKING

In the delivery of this ~130 km long capture, the tiles of the same color will be combined to form an image. Hence, there will be four rasters of each type (TOA/VISUAL/CLOUD) in the package, with chunk indexes 0, 1, 2, 3. The light gray grid represents the 2 x 2 km tiles grid and the dark gray grid is the 80 x 80 km delivery grid.

Products are projected to the corresponding coordinate reference system (CRS) according to their closest matching UTM Zone. The projection is indicated in the proj:epsg property of each product metadata. If a scene is captured across different zones, the entire scene is projected to the zone with more data.

Cloud mask

A cloud mask is also provided as single band GeoTIFF (also in .vrt format and .tiff within the rasters directory). Check here for details and how masks are computed for L1D product.

For L1D_SR, the cloud masks are inherited from the corresponding L1D product and upscaled with a nearest neighbour strategy to the target resolution.

CLOUD_MASKS

Example of clouds detected by Satellogic clouds detector.

Footprint

{date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_footprint.kml contains the product footprint in Keyhole Markup Language.

Toa Factors

The L1D/L1D_SR product raster is provided in Top Of Atmosphere (TOA) reflectance units (which take values between zero and one), encoded with a 10000 factor in order to fit them in a standard Tiff file. The radiometric conversion factors are inherited from the input images (L1C) processing level.

Properties Example
toa_to_radiance_units
W / (m^2 . nm . sr)
toa_reflectance_to_radiance
{
    "blue": 4.776162676561445,
    "green": 4.844255590869656,
    "nir": 13.011088418320432,
    "red": 4.919852418190033
},
reflectance_scale_factor
{
    "blue": 0.0001,
    "green": 0.0001,
    "nir": 0.0001,
    "red": 0.0001
}

Solar and viewing angles

{date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_solar_and_viewing_angles.geojson file contains the tiled information related to the satellite viewing angles, altitude and solar angles.

Properties Example
satellite viewing angles
{
  "azimuth": 88.659999999999997,
  "off_nadir": 14.56,
  “incidence_angle”: 16,
  "units": "degrees"
}
solar angles
{
  "azimuth": 98.519999999999996,
  "elevation": 54.619999999999997,
  “zenith”: 46,
  "units": "degrees"
}
satellite altitude
{
  "units": "meters",
  "values": 407043.03
}

Metadata files

Included in the deliverable package we have different metadata files.

STAC Metadata in Geojson format

{date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_metadata_stac.geojson

This files describes the main attributes of the capture in Geojson format. In particular, it contains STAC Common Metadata and it is summarized in the following table:

Geometry attribute Description Example
gsd Ground sample distance in meters
0.5
created Deliverable creation date
2025-09-01T20:04:56.442757Z
platform Satellite name that acquired the imagery
newsat46
datetime Capture time
2025-09-06T18:43:23.402269+00:00
platform Satellite name
NewSat
proj:epsg EPSG code of the Coordinate Reference System in which the image coordinates are
4326
providers Imagery acquisition responsible
[
  {
    "url": "https://satellogic.com/",
    "name": "Satellogic",
    "roles": [
      "producer",
      "processor"
    ],
    "description": "High-resolution geospatial imagery and analytics"
  }
]
instruments Options are multispectral and hyperspectral
multispectral
satl : outcome_id The UUID of the entire capture this individual frame is part of
ffbabb4f-3a97-45ec-bca3-0e4d56608c1c
satl : exposure_sec Exposure time of capture in seconds
0.002769
satl : product_name The product name
L1D_SR
satl : product_version Product Version
1.4.0
satl : satellite_generation Satellite generation category, mainly to differentiate between MarkIV and MarkV
MarkV
eo : cloud_cover Percentage of the image covered by clouds
6.37
constellation Satellite constellation
Aleph1
view : azimuth Viewing azimuth angle. The angle measured from the sub-satellite point (point on the ground below the platform) between the scene center and true north. Measured clockwise from north in degrees (0-360)
166.1138
view : off_nadir The angle from the sensor between nadir (straight down) and the scene center. Measured in degrees (0-90). In case this angle cannot be computed, a value of -1 will be reported
24.9490
view : sun_azimuth Sun azimuth angle. From the scene center point on the ground, this is the angle between true north and the sun. Measured clockwise in degrees (0-360)
72.3332
view : sun_elevation The estimated sun elevation measured at the target at the moment of the capture. Value in degrees.
60


ISO 19115-2 Metadata

{date}_{time}_{second_decimals}_SN{sn}_{product_name}_{payload}_metadata_iso.xml

Satellogic adheres to industry standards governing metadata schemas that align with ISO standards. The adoption of ISO 19115 (ISO metadata standard) ensures that information about sensor identification, image extent, quality, spatial and temporal aspects, content, spatial references, distributions, and other properties of digital geographic data are provided in a XML format for customers seeking to integrate Satellogic map-ready orthorectified raster data directly into their workflows.

The table below shows the metadata fields according to ISO 19115-2:

Identifier Type Description
gmd:fileIdentifier string

Unique file identifier

gmd:language code

Language used for metadata (eng)

gmd:characterSet code

Character coding standard in the metadata (utf8)

gmd:contact string

Contact information of the company responsible for the metadata information (Satellogic)

gmd:dateStamp date

Date of dataset creation in UTC

gmd:metadataStandardName string

Name of the metadata standard used (ISO)

gmd:metadataStandardVersion string

ISO metadata standard version

Spatial representation information: grid spatial representation
gmd:numberOfDimensions integer

Number of independent spatial-temporal axes (2d: x, y )

gmd:axisDimensionProperties string/integer

Dimension name (column) and size (integer), resolution (m)

gmd:cellGeometry code

Grid data identification (area)

gmd:transformationParameterAvailability boolean

Dataset coordinates and geographic or map coordinates availability

gmd:referenceSystemInfo string/date

Information of CRS provider, release date, version and edition details

Metadata extension information
gmd:MD_ExtendedElementInformation string

Exposure time (seconds) and responsible party information (Satellogic)

Data identification
gmd:Citation_title string

Name of the dataset

gmd:Citation_Date date

date in UTC

gmd:abstract string

Scene set identification (Scene set ID)

gmd:pointOfContact string

Contact information

gmd:resourceMaintenance string

Information on dataset maintenance

gmd:resourceConstraints string

The limitations or constraints on the use of or access to dataset

gmd:spatialRepresentationType code

Object used to represent the geographic information

gmd:language code

Languages of the dataset using standard ISO three letter codes (eng)

gmd:characterSet code

Character coding standard in the dataset

gmd:environmentDescription string

Describes the dataset's processing environment

gmd:extent decimal

Information about geographic extent of the dataset (bounding box coordinates)

gmd:supplementalInformation string

Satellogic constellation, satellite name and satellite generation

Content info
gmd:attributeDescription string

Sensor type

gmd:contentType string

Dataset content type

gmd:dimension string

Imagery bands information (name and wavelength)

gmd:illuminationElevationAngle decimal

Sun elevation angle in degrees

gmd:illuminationAzimuthAngle decimal

Sun azimuth angle in degrees

gmd:imageQualityCode string/date

Metadata standard and version release

gmd:cloudCoverPercentage decimal

Percentage of the area covered by clouds

gmd:processingLevelCode string

Corresponds to data product level

gmd:compressionGenerationQuantity integer

Compression information

Distribution info
gmd:distributionFormat string

Dataset format name and version


Digital signature

Additionally, every L1D and L1D_SR package includes a digital signature to ensure data authenticity and integrity. Each package contains a manifest file and cryptographic signature that allows verification that the delivered data has not been tampered with. Learn more about Digital Signature verification.

Known issues

This section lists imagery product anomalies which sometimes slip through the automatic quality assurance filters due different reasons, appearing clearly different from images that have gone through imagery quality assurance pipeline. The most known anomalies are explained in this section.

Flipped pixel values in RGB enhanced images

The current image enhancement algorithm causes some flipped pixel values in saturated areas. This will be corrected in future versions of the pipeline.

ORTHO_FLIPPED_ISSUE

Flipped pixel values visible in saturated areas of RGB composites.

Reduced geo-accuracy

Some terrain types and environmental conditions might cause the Ground Control Points (GCPs)-based geometric correction to fail, producing captures of lower geo-accuracy. Standard imagery products are delivered with less than 10m geoaccuracy, however, because of high terrain and the lack of GCPs, especially in areas without human made structures such as water, deserts, forests etc., less than 10m geoaccuracy is not achievable, hence some delivered images might show a shift in geolocation. In some extreme cases, such as over open water, such products are marked as a low geoaccuracy quality tier and not generally delivered to customers, but are available on demand for customers who do not have strict geoaccuracy requirements. Some examples are provided below.

ORTHO_GEO_ISSUE

Rural area close to mountain shadow in hilly terrain (left), showing reduced geo-accuracy. Features were shifted 77m relative to the reference map. On the right is the reference source - obtained from ESRI imagery.

Digital Elevation Model (DEM) distortions

Orthorectified images can present distortions in the presence of outliers in the DEM used during imagery processing. Satellogic is able to detect these problems in the DEM and use alternative models. Occasionally the detector may fail to locate the outliers and produce geometric distortions that affect terrain features.

These elevation errors can cause linear features—such as roads, rivers, or building edges—to appear warped or distorted, particularly in challenging terrain. The severity of this issue tends to be more pronounced in mountainous regions and areas characterized by steep terrain slopes, as well as in coastal zones adjacent to sea level.

The images below illustrate this effect: the first shows general distortion in high-altitude, steep terrain areas. The second and third examples compare the same area before and after correction, showing how linear features that should remain straight can become warped due to DEM outliers, and how an improved elevation models can restore geometric rigidity.

ORTHO_DISTORTION

Distortion in an orthorectified image in high-altitude terrain with steep slopes.
With DEM Outliers (Warped Linear Features) With Improved DEM (Proper Geometric Rigidity)
DEM Outliers - Warped Features Improved DEM - Corrected Features
Linear features (roads) appear warped and distorted due to DEM outliers. With an improved DEM, the proper geometric rigidity of linear features is recovered.

Discontinuities

Discontinuities may also be inherited from L1C processing level

Frame loss during satellite data transmission

Missing frames may also be inherited from L1C processing level

Changelog

Changelog L1D

Version Release date Change log
2.4.0 13/07/2026
    Changed
  • Set GEDTM v1.2 as default DTM for orthorectification.
2.3.0 01/07/2026
    Added
  • Support to GEDTM.
2.2.0 04/02/2026
    Added
  • Improved cloud detection for fully cloudy captures.
  • Better handling missing frames.
2.0.1 19/11/2025
    Changed
  • Convert analytic, cloud and visual tiles to COG (Cloud Optimized GeoTIFF) format with overviews
2.0.0 17/11/2025
    Changed
  • Metadata harmonizations
    • Renamed TOA factors asset fields for clarity:
      radiance_to_reflectance → removed
      toa_reflectance_to_radiance → added
      reflectance_scale_factor → added
      vicarious_correction → removed
      toa_to_reflectance → removed
      toa_to_dn → removed
      dn_to_radiance → removed
      sun_irradiance → removed
      earth_sun_distance → removed
    • Change satellite_altitude units from kilometers to meters
    • Changed convention of view:azimuth to, the angle measured from the satellite point (point on the ground below the platform) between the scene center and true north. Measured clockwise from north in degrees (0-360). As defined in STAC View extension
  • Changed cloud mask codification, from [0: no_data, 1: valid_data, 128: cloud] to [0: no_data, 1: clear, 2: haze, 3: cloud]. New category "clear" replaces old category "valid_data". For further details check Cloud Mask section
  • 2x2km tiles
1.2.0 12/06/2025
    Changed
  • Change datetime of every L1D STAC item (field: 'datetime') from the sceneset datetime to the exact item datetime. The change is reflected in the file naming of each L1D item on the STAC catalog
  • Generally the naming of an item is defined as <DATE>_<TIME>_SN<SATELLITE_NUMBER>_<L1D>_MS_<GRID_CODE>_<PRODUCT_VERSION>. From version v1.2.0 every item will have its own <TIME> rather than the capture time
  • Example:
    Before: Item ids differed only for tile grid number
    20250612_075918_430_SN46_L1D_MS_38N_456_4852_1_1_2
    20250612_075918_430_SN46_L1D_MS_38N_472_4848_1_1_2
    After: Item ids also differ for <TIME>
    20250617_094442_485_SN28_L1D_MS_42N_740_3616_1_2_0
    20250617_094445_023_SN28_L1D_MS_42N_736_3596_1_2_0
1.1.2 19/12/2024
    Fixed
  • Fix random grid pattern introduced in image orthorectification algorithm
1.1.1 07/11/2024
    Fixed (STAC archive)
  • Fix L1D visual rasters no data values. Some valid pixels were set as no data
1.1.0 06/11/2024
    Changed
  • Update visual product (3 bands RGB 8 bits) color correction
  • Replace Histograms stretching with custom color curve to reduce colors inconsistency between scenes
1.0.1 14/10/2024
    Changed (STAC archive)
  • Changed analytic and cloud rasters to be COG, add band interpretation to rasters
1.0.0 01/10/2024
    Changed (Delivery package)
  • Change product namings: L1 → L1D TOA, L3 → L1D VISUAL, L1_SR → L1D_SR TOA, L3_SR → L1D_SR VISUAL
  • Change file names to new naming convention with _TOA, _CLOUD, _VISUAL suffixes
  • Change fields names in toa_factors: L1_to_radiance → toa_to_radiance, L1_to_reflectance → toa_to_reflectance, removed toa_product, idx_x, idx_y
  • Change fields names in solar_and_viewing_angles: satellite/elevation → satellite/incidence_angle, removed idx_x, idx_y
  • Removed fields from metadata_stac: title, description, proj:centroid
  • Added (Delivery package)
  • Added overview files: .vrt.ovr for TOA and VISUAL products
  • Added view fields to metadata_stac: view:sun_azimuth, view:azimuth, view:incidence_angle
  • Changed (STAC archive)
  • Rename files with new convention
  • Change band orders of analytic product from RGBN to BGRN
  • Move properties from satl to toa_factors asset: reflectance and radiance conversion factors
  • Move metrics properties from satl to satl-qa prefix and rename: geoaccuracy metrics, SNR, color correction metrics
  • Added (STAC archive)
  • Added properties: satl:ground_lock, satl:exposure_time, satl:satellite_generation, instruments
  • Added toa_factors attachments as asset
  • Added stac-qa properties: dynamic range per band, alignment metrics, exposure time, satellite altitude
0.3.0 12/07/2024 Changed
  • Change higher percentile in histogram stretching of L3 product to deal with saturation on bright objects
0.2.0 29/04/2024 Fixed
  • Fix Stray light correction for MarkV imagery
Added
  • Improve sharpness for MarkV imagery
Changed
  • Change DN conversion to 10 bits
0.1.0 03/04/2024 Added
  • Post to new archive 2.0 L1D and L1D-SR products

Changelog L1D_SR

Version Release date Change log
2.0.1 26/11/2025
    Added
  • Added property satl:ground_lock in the item metadata
2.0.0 17/11/2025
    Changed
  • Metadata harmonizations
    • Renamed TOA factors asset fields for clarity:
      radiance_to_reflectance → removed
      toa_reflectance_to_radiance → added
      reflectance_scale_factor → added
      vicarious_correction → removed
      toa_to_reflectance → removed
      toa_to_radiance → removed
      toa_to_dn → removed
      dn_to_radiance → removed
      sun_irradiance → removed
      earth_sun_distance → removed
    • Change satellite_altitude units from kilometers to meters
    • Changed convention of view:azimuth to, the angle measured from the satellite point (point on the ground below the platform) between the scene center and true north. Measured clockwise from north in degrees (0-360). As defined in STAC View extension
  • Changed cloud mask codification, from [0: no_data, 1: valid_data, 128: cloud] to [0: no_data, 1: clear, 2: haze, 3: cloud]. New category "clear" replaces old category "valid_data". For further details check Cloud Mask section
  • 2x2km tiles
1.4.0 21/08/2025
    Added
  • Include field "satl:satellite_generation"
1.4.0 11/06/2025
    Added
  • Include field "satl:l1d_product_version" for the collection l1d-sr
  • Fixed
  • Fix vertical tonal differences occurring in large captures
1.3.0 04/06/2025
    Added
  • Included sharpness metrics for L1D-SR (STAC API fields under satl-qa prefix)
  • Fixed
  • Fix in computation of SNR and DR metrics (STAC API fields under satl-qa prefix)
  • Changed
  • Fine tuning of the super resolution model for Mark5 imagery
1.1.2 19/12/2024
  • See CHANGELOG L1D for the details. Note from this date L1D and L1D_SR CHANGELOG are separated

Imagery End User Rights Agreement and Terms of Use

All imagery products are delivered under Satellogic Imagery End User License Agreement. The terms and conditions of the agreement are available to customers and accessible online on the website under License Agreement.
